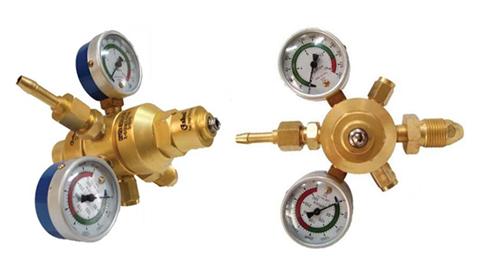

TWO STAGE REGULATOR

Description

Gas	Model No.	Max. Inlet Pressure	Max. Outlet Pressure	Inlet Connection	Outlet Connection	Flow Rate(LPM)
Oxygen	AOX-5N	150 bar	10 bar	G-5/8″ A-14 BSP RH	G-3/8″ -19 BSP RH	950
Acetylene	ADA-5N	25 bar	1.5 bar	G-5/8″ A-14 BSP LH	G-3/8″ -19 BSP LH	100
Nitrogen	AN2-5N	150 bar	10 bar	G-3/4″ -14 BSP RH	G-3/8″ -19 BSP RH	950
Nitrous Oxide	AN2O-5N	150 bar	10 bar	W 11/16″ – 20 RH	G-3/8″ -19 BSP RH	950
Carbon dioxide	ACO2-5N	150 bar	4 bar	W 21.8 X 1.814 RH	G-3/8″ -19 BSP RH	600
Argon	AAr-5N	150 bar	10 bar	G-3/4″ -14 BSP RH	G-3/8″ -19 BSP RH	950
Hydrogen	AH2-5N	150 bar	10 bar	G-5/8″A -14 BSP LH	G-3/8″ -19 BSP LH	950
Helium	AHe2-5N	150 bar	10 bar	G-3/4″ -14 BSP RH	G-3/8″ -19 BSP RH	950
Air	AAir-5N	150 bar	10 bar	G-7/8″ -14 BSP RH	G-3/8″ -19 BSP RH	950
