Description
Features

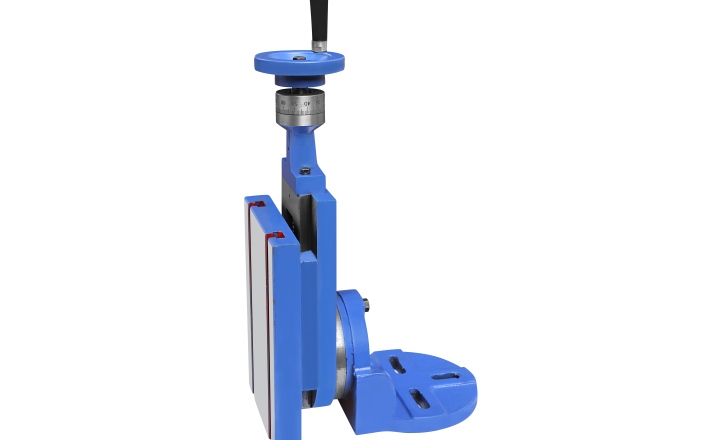

- Vertical Sliding Table (With calibrated wheel & swivel graduated base).
- The surface table can swivel all round and 0° is marked to show the angular movement.
- The T-Slots are machined from Solid.
- Dovetailed slides have adjustable steel gibs to compensate for wear.
- Equipped with two axis positioning.
- Base have bolt slots for machine mounting.
Specifications
| SIZE IN INCHES | 12×8 |
|---|---|
| Table Size in mm | 300×200 |
| Height in mm | 125 |
| Length Overall in mm | 510 |
| T. Slot Size in mm | 14 |
| Travel Bothways in mm | 200 |
| Width of Jaws in mm | – |
| Depth of Jaws in mm | – |
| Calliberation | – |
| Wheel Graduation in Inches | – |
| Weight Approx. in kgs | 34 |
