Description
Features

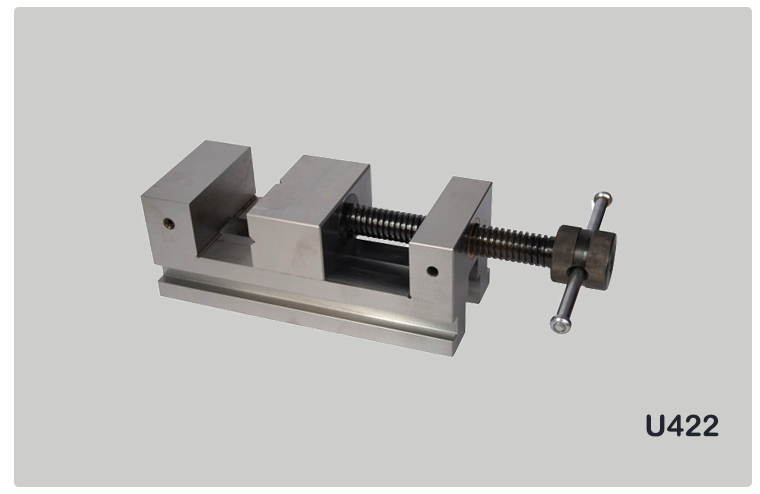

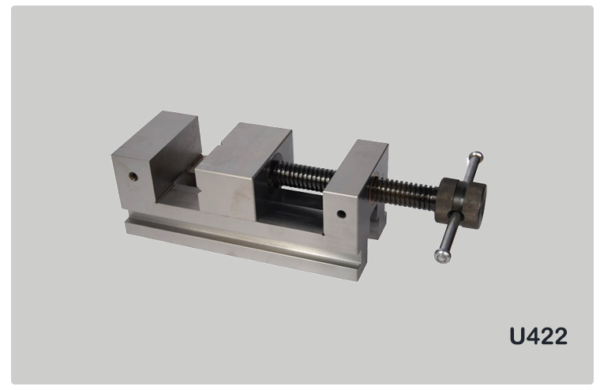

- All Vice surfaces are precision ground.
- The movable jaw is slightly narrow than the base enabling the vices to be used on either sides in addition to the base.
- Clamping and releasing is through a threaded spindle with precision cut square threads for smooth operation.
- Vice spindle moves in a specially designed gun metal bush which reduces wear thus enhancing the life of the vice.
- Fix Jaw side threaded for clamp support 5/16″BSW.
- These are available in two models.
| SIZE IN INCHES | 3″ | 4″ |
|---|---|---|
| Width of Jaws in mm | 76 | 95 |
| Depth of Jaws in mm | 40 | 45 |
| Opening of Jaws in mm | 82 | 107 |
| Length Overall | 290 | 253 |
| Height Overall | 70 | 90 |
| Width Overall | 76 | 95 |
| Weight (Approx) in kgs | 45.2 | 9.8 |
