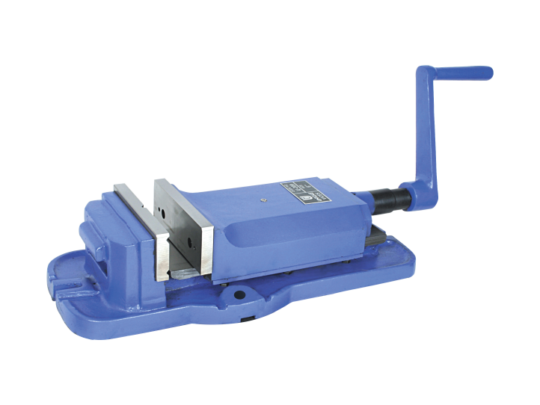

Super Milling Vice Bridge Port Type - U 309

Description

Fitted with Thrust Bearing for Smooth Movement.
Sturdy & accurately made machine vices from graded casting.
Fine acme thread screw.
Jaws are made of special steel properly hardened, fixed jaw is provided with vertical & horizontal ‘V’ groove to hold the round job firmly.
The swivel base is graduated fully through 360º.
Vice can be converted from swivel base to fix by removing the base.
Quick alignment to machines through longitudinal slot provided in base & body.
Crank handle is made of unbreakable steel provided with a spring loaded mechanism providing positive grip.
Body is provided with water channel.
Depth of jaws is more to hold heavy jobs.
Supplied with Stopper for Fast Production.

	Sizes in Inches	4	5	6	8
A	Width of jaws in mm	100	125	150	200
B	Opening of jaws in mm	100	125	150	200
C	Depth of jaws in mm	45	50	55	65
D	Length overall in mm	344	400	470	610
F	Height overall in mm	90	100	110	120
H	Width overall in mm	165	192	220	275
	Tenon Slot Size in mm	16	20	20	20
	Weight (Approx) in kgs.	13	20	29	52
