Description
Features

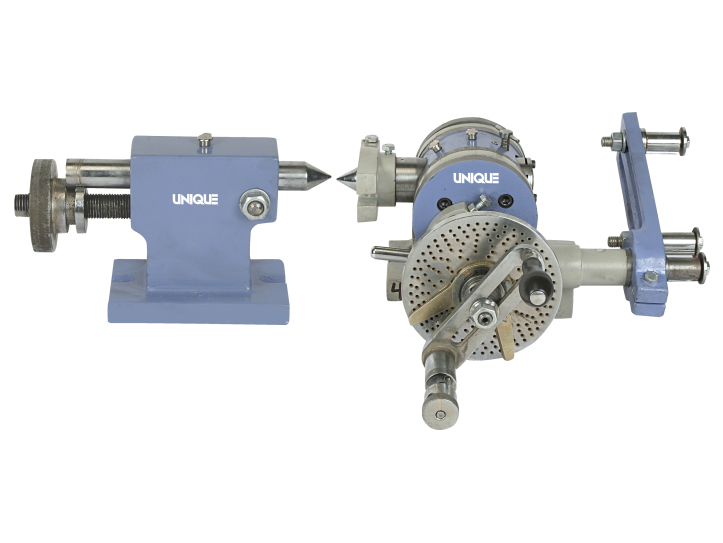

- Unique Dividing heads are carefully designed for tool Rooms as well as for production purpose .
- They are suitable for indirect and differential indexing as well as for spiral and cam milling operations on universal milling machine.
- Unique dividing heads are manufactured from Selected high quality material with Superior workmanship.
Specifications
| SIZE IN INCHES | 4.1/2 | 5.1/2 | 6.1/2 | 7-1/2 |
|---|---|---|---|---|
| Gear worm ratio | 01:40 | 01:40 | 01:40 | 1:40 |
| Centre height in mm | 115 mm | 142 mm | 165 mm | 190mm |
| Spindle Bore in mm | 20 mm | 32 mm | 38 mm | 50mm |
| Spindle Taper | 9º | 9º | 9º | 9° |
| Overall height Vertical position in mm | 180 | 230 | 260 | 290 |
| Length of base in mm | 180 | 230 | 260 | 270 |
| Width of base in mm | 115 | 150 | 170 | 180 |
| Weight in kgs. | 40 | 65 | 92 | 98 |
